MWT High Efficiency Sunport Solar Panels 385W-405W House Home Use Solar Panel 400W

Name: MWT High Efficiency Sunport Solar Panels 385W405W House Home Use Solar Panel 400W
Brand: Sunport
Price: 1 USD

Model Number : QHFH(B)

Place of Origin : Jiangsu, China

MOQ : 30pcs

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 Watt/Watts per Week

Delivery Time : To be negotiated

Packaging Details : pallet

Brand Name : Sunport

Certification : CGC，ISO9001:2015，TUV SUD，PV，CNAS，

Product name : MWT Flexible Solar Panles

Cell size : 132(22x6) / Mono / Half-cell

Panel Efficiency : 20.7%

Installation Module Dimension : 1889mm*1035mm*30mm

Encapsulant : POE

Contact Now

Sunport Power High Efficiency 385-405W Full Black Solar Panels Uses 400 Watt For Your Home

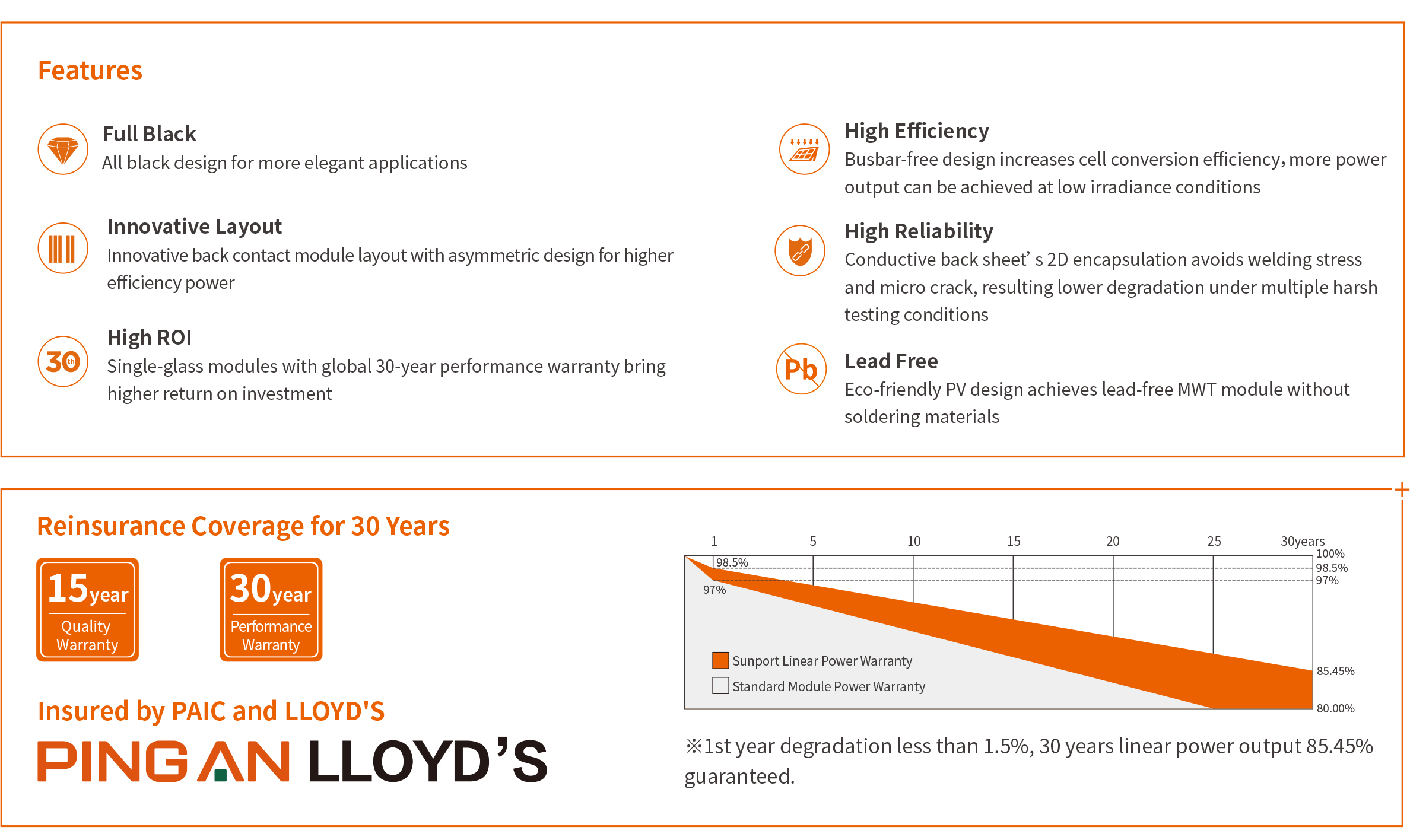

Full Black

All black design for more elegant applications

High Efficiency

Busbar-free design increases cell conversion efficiency,more power output can be achieved at low irradiance conditions

Lead Free

Eco-friendly PV design achieves lead-free MWT module without soldering materials

High Reliability

Conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions

Innovative Layout

Innovative back contact module layout with asymmetric design for higher efficiency power

High ROI

Single-glass modules with global 30-year performance warranty bring higher return on investment.

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SPP385QHFH	SPP390QHFH	SPP395QHFH	SPP400QHFH	SPP405QHFH
Max-Power(Pm)	W	385	390	395	400	405
Power Tolerance	W	0~±5
Max-Power Voltage(Vm)	V	36.5	36.7	36.9	37.1	37.3
Max-Power Current(lm)	A	10.55	10.63	10.73	10.79	10.86
Open-Circuit Voltage(Voc)	V	44.3	44.5	44.7	44.9	45.1
Short-Circuit Current(lsc)	A	11.07	11.14	11.21	11.28	11.35
Module Efficiency(qm)	%	20.7	20.9	21.2	20.5	20.7

MWT High Efficiency Sunport Solar Panels 385W-405W House Home Use Solar Panel 400W

TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —

MWT
Positive and negative electrodes are both on the rear side of solar cell

Conventional
Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons

MWT High Efficiency Sunport Solar Panels 385W-405W House Home Use Solar Panel 400W

Sunport Power - established in 2012 with 5 production factories & 3GW solar module capacity

Jiangsu Sunport Power Corp., Ltd. was founded in 2012 in China and dedicated to R&D and manufacturing of solar cells and modules.

Based on advanced MWT (Metal Wrap Through) back contact technology, committed to manufacturing of high-efficiency PV cells and modules, providing professional products, services and solutions for customers.

MWT High Efficiency Sunport Solar Panels 385W-405W House Home Use Solar Panel 400W

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
